How to type phonetic symbols on a computer

  1. Web-based On-screen-keyboards (point-and-click; low learning curve, but no fast typing speed; typing into a textbox from where you can copy/paste the result into other programs):
    1. http://westonruter.github.com/ipa-chart/keyboard/: Sounds are systematically organized. Suitable for learners, but also good for teacher demonstrations. image
    2. Partially based on keyboard shortcuts: http://www.ipatrainer.com/user/site/index.php?pageID=ipawriter: image
      1. http://ipa.typeit.org/full/: Other than the English version, the full version includes non-English sounds. The interface is optimized for fast typing (sorted by keyboard key). Presumably better for teachers using a screen projector as a whiteboard. image
      2. i2speak.com (reviewed here earlier): imageimage
      3. Update: Richard Ishida’s seems also impressive,
        1. image
        2. and you can use phonetics terminology to get characters selected, like so: image
  2. Windows-based:
    1. http://www.phon.ucl.ac.uk/resource/phonetics/: MS-Windows keyboard layout. May be good for even faster typing, if you can memorize the keyboard layout or add keyboard stickers (we unfortunately have too many languages vying for our hardware keyboard space already). Requires download & installation (may be added to the LRC keyboards during next imaging if we receive enough requests).
    2. http://staff.washington.edu/dmontero/IPACharmap/.
    3. http://sourceforge.net/projects/allchars/: If you are use to the ALT+### method of entering characters and are still on XP, this may be for you: You can generate your own keyboard shortcuts for phonetic characters.
    4. MS-Word:
      1. http://email.eva.mpg.de/~bibiko/downloads/uniqoder/uniqoder.html: Allows to select IPA-Symbols from a toolbar. Untested.
  3. There are also always X-Sampa and CXS and ASCII-IPA: ways of writing IPA in plain ASCII messages  – but yet another thing to teach novices in phonetics may be a bridge too far.

Cheatsheet for typing phonetic symbols with the IPA Keyboard Layout on Windows 7 – the ultimate training…

…using animated .gifs. Slower? Compact: 0.25sec, 0.5sec, 0.75sec, 1sec, 1.5sec, 2sec, 3sec, 4sec, 5sec, 6sec, 7sec, 8sec, 9sec, 10sec.

This is taken straight from the great documentation of this great Phonetic symbols Windows keyboard layout by SILS international, but needed a bit of massaging to support hands-free lookup via display on one screen of your dual screen system, while you learn or demo the keyboard to the class).  Users without dual screen (including students) are better off with the slideshow below in which they can stop the images on any page:

View album

View album

View album

The IPA MSKLC can produce both regular Roman characters and transcriptions with phonetic symbols by employing certain “dead keys”  that can be combined with regular keys. Just and like our default LRC keyboard us-international .

Your first must select the keyboard like so. image (Icelandic is suitable since it is not used for other purposes much).  In the LRC, you must wait until we upgrade to Windows7.

Keyboard layouts and IME’s on LRC Windows 7 PCs

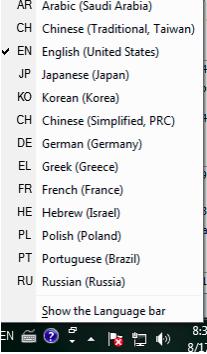

You can change the input language using the language toolbar which appears next to the notification area in the lower right of the task bar.

Note that many languages need not be listed since their characters can be typed, Windows-wide, using keyboard shortcuts of the  English-US (international extended) keyboard layout.

Some installed input methods benefit from having keyboard overlays which have been installed on some computer. Other input methods allow for drawing characters, e.g. in Japanese or Mandarin, which works better with the Wacom tablet installed on PC01 and PC02 than with a mice.

Many languages have more than one keyboard/input method. After changing to your  language on the language toolbar, you can switch from the language’s  default keyboard layout to  another by clicking on keyboard icon  behind the 2-letter language abbreviation.

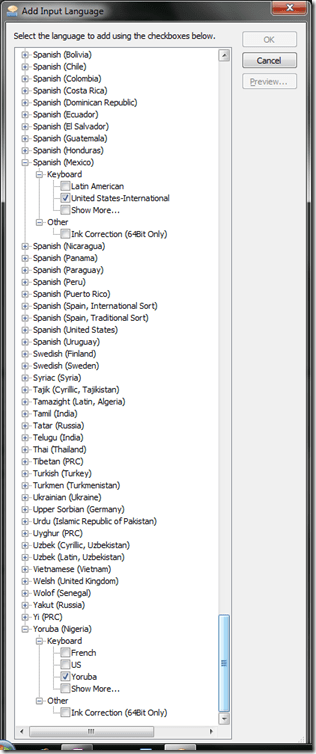

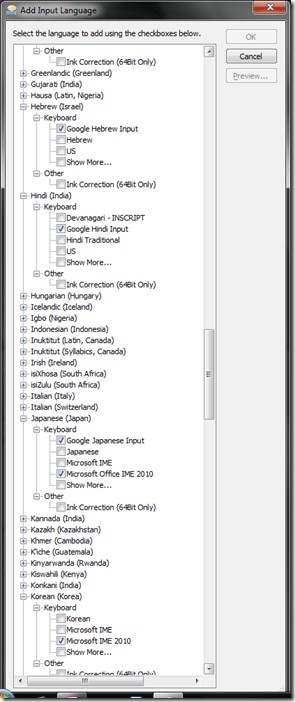

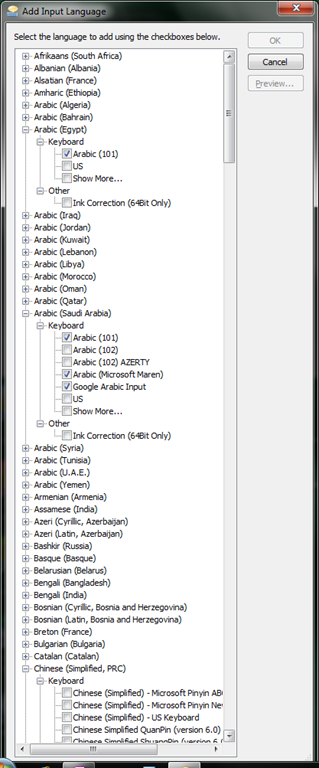

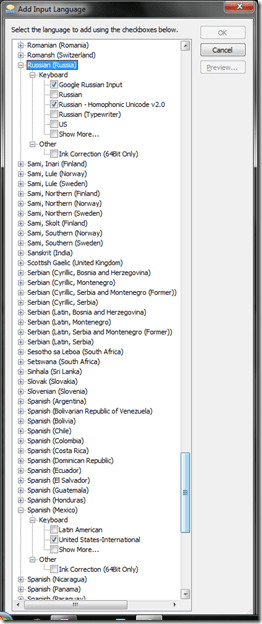

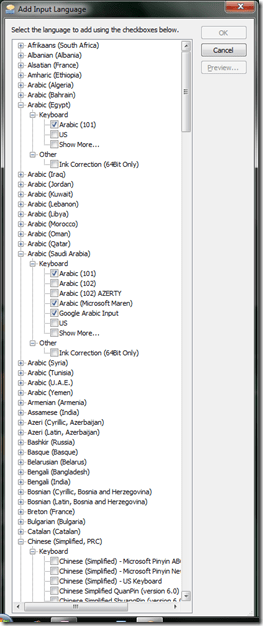

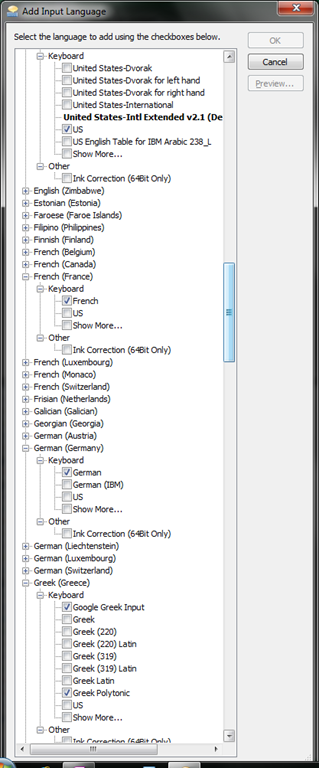

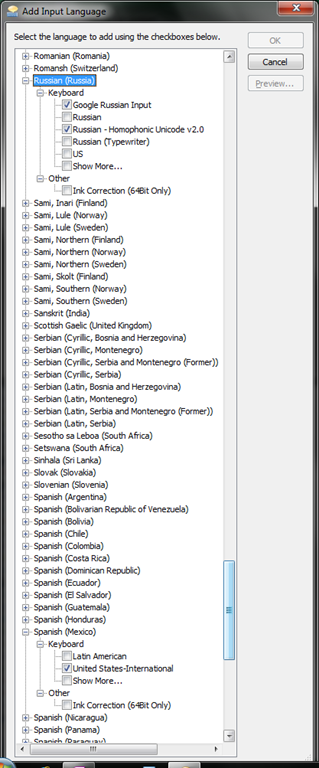

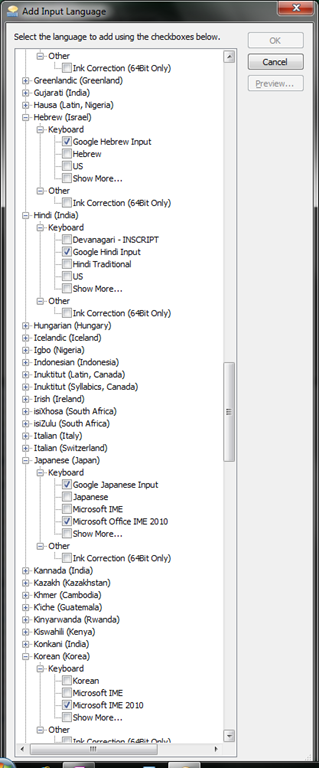

imageBelow is a comprehensive list of all layouts that are available to you:



languages1languages2languages3languages4languages5languages6languages7

Foreign Language Character Input on Windows 7 in the LRC

2012/08/16 1 comment
  1. The LRC, now on Windows 7, is testing  Carly J. Born’s U.S. International Extended 2.0 Keyboard, an improvement on the previously used US International Keyboard (still recommended for personal use, as it comes standard with all but ancient versions of Windows) for typing accented characters in Western languages, Pinyin-tone-marks for Mandarin (replacing the also useful, but more evolved Pinyinput), and other SLA tone- and length-marks e.g. for Latin.
  2. Not limited to specific application, you can use anywhere in Windows the following shortcut’s – taken from the original developer documentation (with some minor modifications).
  3. We hope you find the benefit for SLA far outweighs the need to getting used to typing a space between the 2 red characters and a vowel, in order to produce their regular form, without creating a foreign language character.

acute accent, pinyin 2nd tone

apostrophe (= ‘), vowel

(e.g. á é í ó ú)

grave accent, pinyin 4th tone

grave (= `), vowel

(e.g. à è ì ò ù)

c cedilla

comma apostrophe, c

(e.g. ç)

macron accent, pinyin 1st tone

hyphen, vowel

(e.g. ā ē ī ō ū )

vowel with umlaut

double-quote (= “), vowel

(e.g. ä ë ï ö ü ÿ)

vowel with circumflex

shift+6 (= ^), vowel

(e.g. â ê î ô û)

pinyin 3rd tone

Shift+5, vowel

(e.g. ǎ ě ǐǒǔ)

ü with pinyin tones

Accent, double-quote

(e.g. ǖǘǚǜ)

letter with tilde

tilde (= ~), letter

(e.g. õ ñ ã)

letter with dot below

shift+period, letter

(e.g. ạ ẹ Ẹ ị ọ ụ)

letter with double acute

shift+; , o or u

(e.g. ő, ű, Ő, Ű)

«

ctrl + alt + [

»

ctrl + alt + ]

ctrl + alt + 5

ß

ctrl + alt + s/right-ALT + s

ø

ctrl + alt + l

[won’t work in word, onenote, but works in excel]

¿

ctrl + alt + /

¡

ctrl + alt + 1

[To type ¡, disable the command called ApplyHeading1 in the Format category, in word or onenote, but not needed in excel]

œ

Right alt + k

Foreign Language Character Input on Windows XP in the LRC

2011/04/14 1 comment

The LRC offers the following foreign language characters writing support:

American English us international not needed us-int
Arabic Google;MS;MS-maren;fontboard maybe later, now osk demo
British English us international not needed us-int
Dutch us international not needed us-int
Farsi Google;MS maybe later, now osk demo
French us international not needed us-int
German us international not needed us-int
Greek Google;MS maybe later, now osk demo
Italian us international not needed us-int
Japanese MS not needed
Korean MS maybe later, now osk demo
Mandarin MS;pinyinput not needed pinyin
Portuguese (Brazilian) us international not needed us-int
Russian Google;MS maybe later, now osk demo
Spanish us international not needed us-int

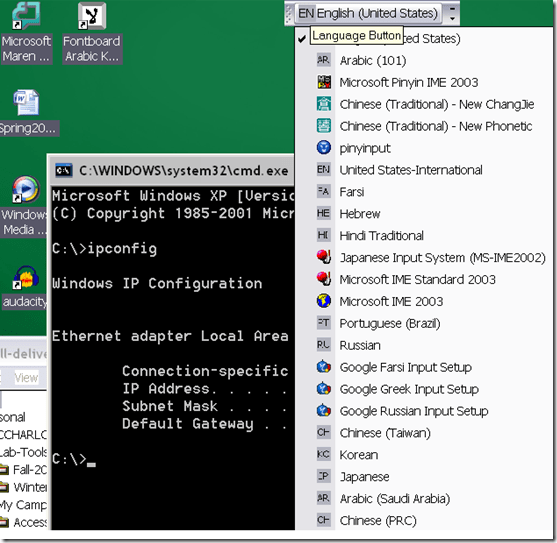

The support is best accessed from the “international toolbar”, like so: lrc-international-keyboards-cropped

You can also use the windows on-screen keyboard to input non-Western characters on a computer that has not the corresponding keyboard overlay stickers. In the small-group workspaces, which have writing pads, you can also use the MS-Handwriting IME for East-Asian languages.
