Step-by-step how to set up a delegate for your mail account in MS-Outlook 2010 on MS-Exchange 2010

delegate-setup

We are just using the default options here – explore more on your own, as you wish (e.g. Let someone else mind your busyness). You need to use MS-Outlook – I  don’t see an option in OWA to set up delegate access. But your delegate will carry over to OWA if you prefer to use the webmail client.



Next question: what does the delegate see/do?

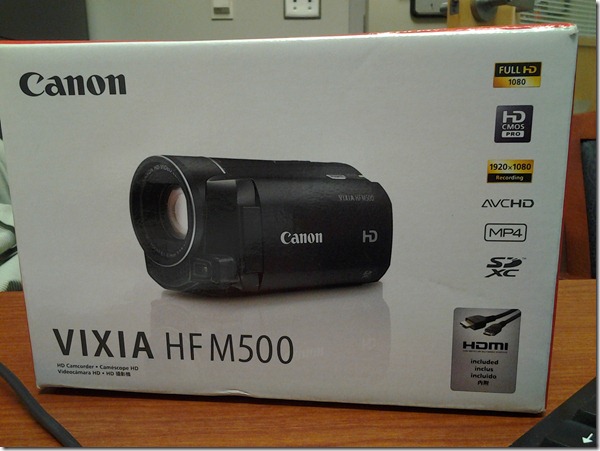

How-to for the new Vixia HF M500 camera

Here it is, and available for checkout per instructions here. Also see the video size considerations.vixia-hfm-500

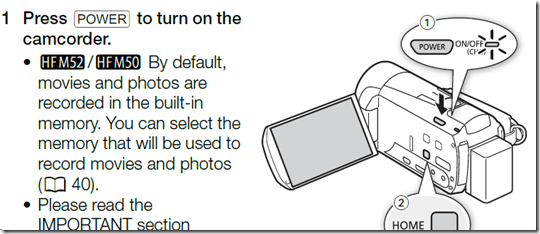

Step-by-step for Basic Recording:

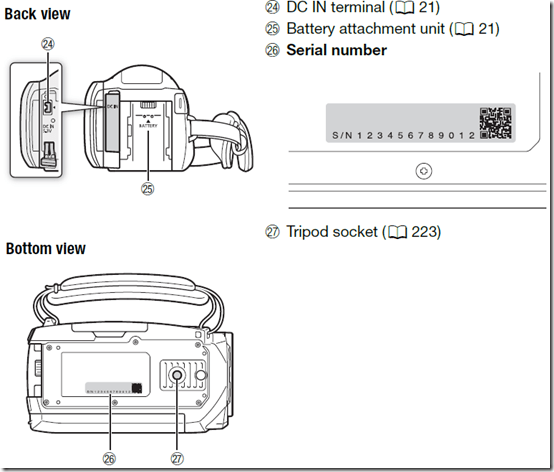

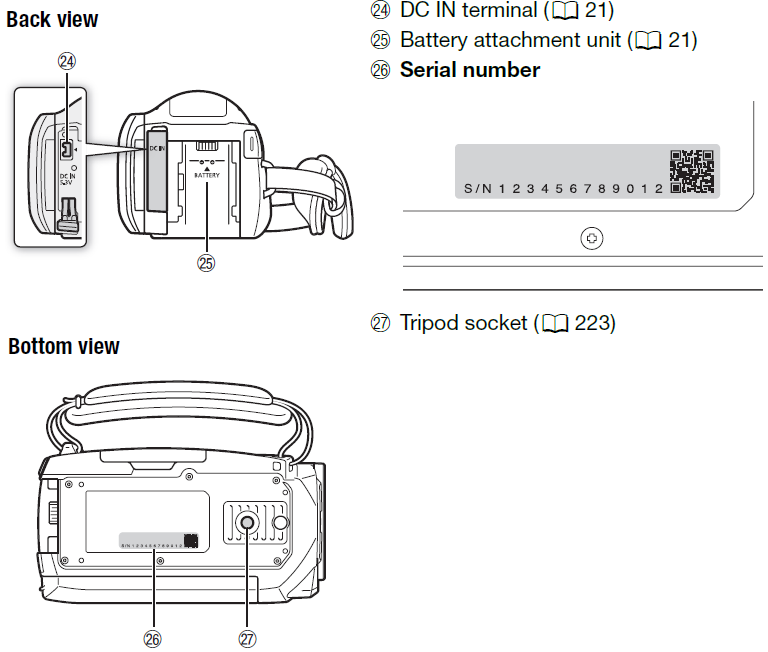

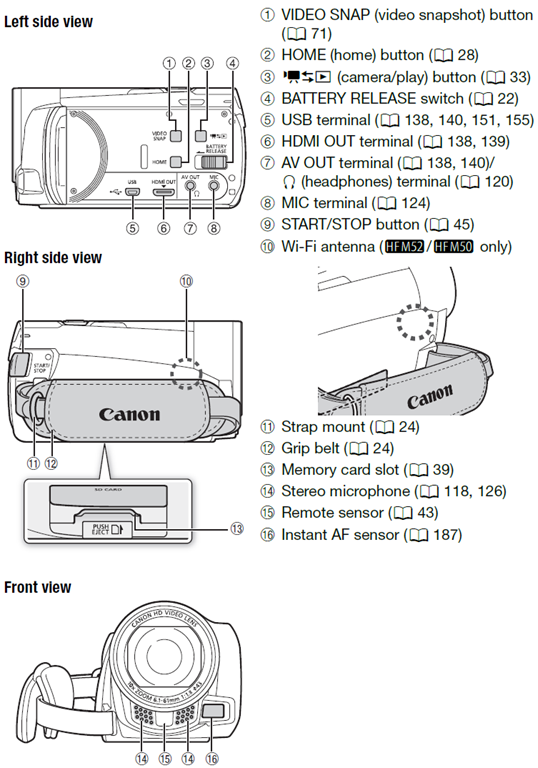

The Parts and Controls of the Camera:


Protected: How to run the LangLabEmailer

2013/06/07 Enter your password to view comments.

This content is password protected. To view it please enter your password below:

Step-by-step for using Windows Task scheduler, e.g. for automating language lab assessment emailing

  1. Press + R, type “Taskschd.msc”, press “OK”.
  2. On right menu, click “Create Task". To provide students with their assessments and possibly instructor feedback quicker, I run the LangLabEmailer repeatedly after end of business day. I show some settings that you can experiment with.

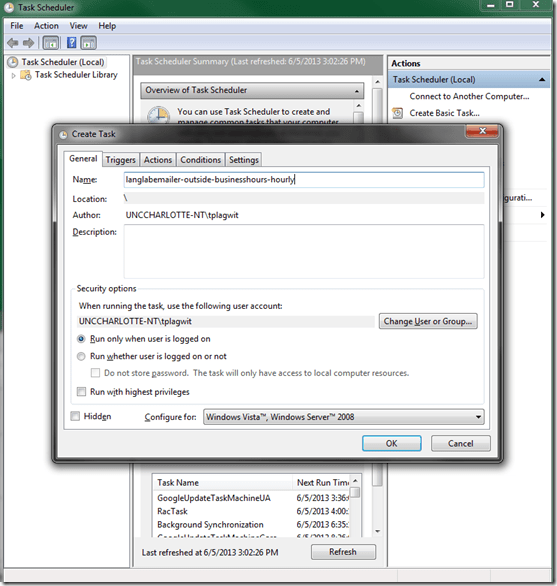

  3. On tab: “general”, name your task:
    1. clip_image001

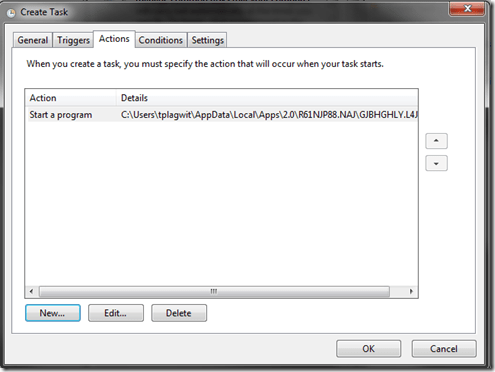

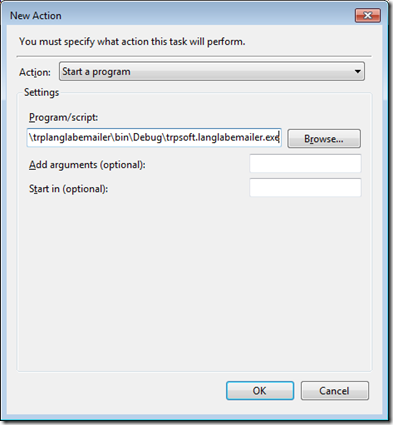

  4. Tab: Actions, button:new / window:new action, button:browse, desktop/LangLabEmailer , button:open
    1. clip_image002
    2. clip_image003
    3. clip_image004

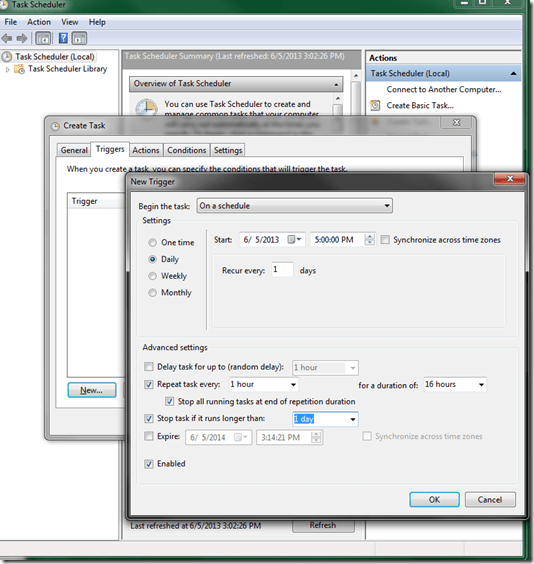

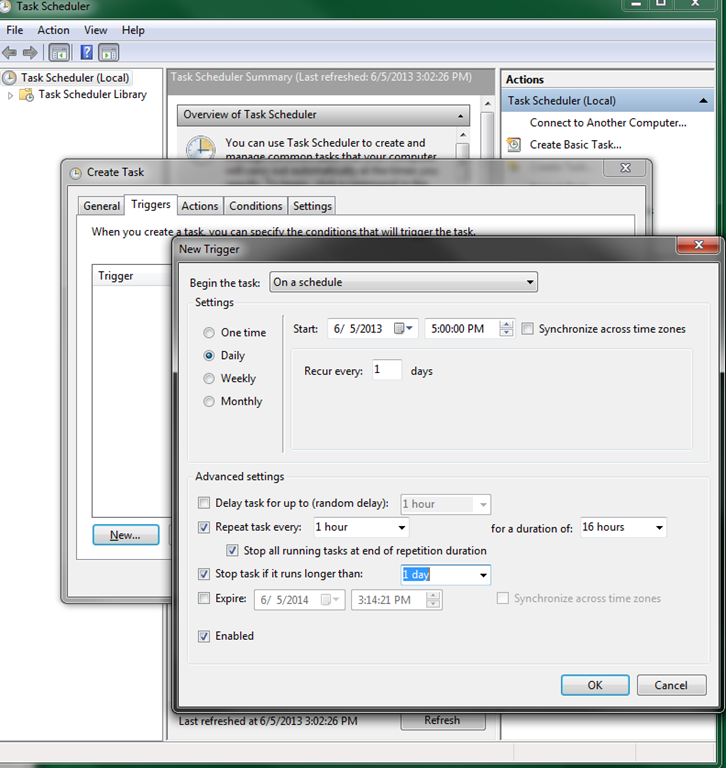

  5. Next up: tab:“Trigger”, where you can set your schedule:
    1.  clip_image006

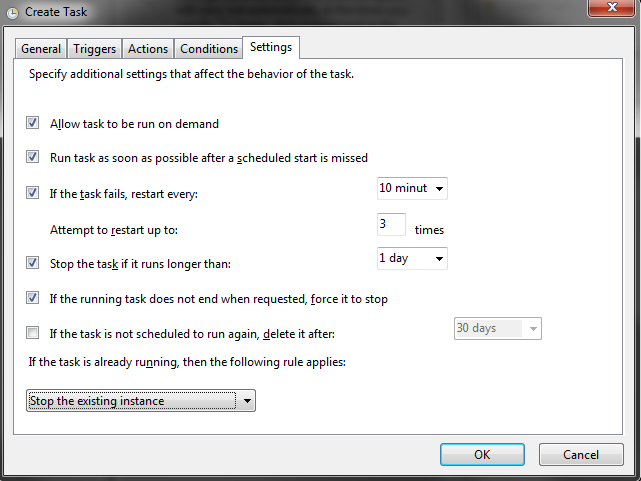

  6.   Finally, access additional (tab:)“Settings”:
    1. clip_image007

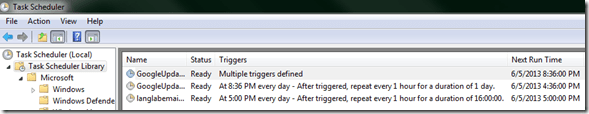

  7. Result: image
  8. I advise setting the scheduler to end a prior task if it is found still running.
  9. The above example is using an old ClickOnce distribution of the langlabEmailer– your installation executable will differ and look similar to this: image_thumb1
  10. Troubleshooting:

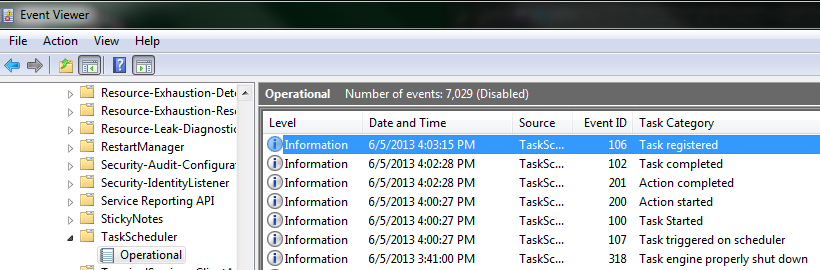

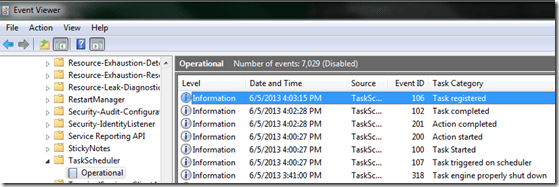

    1. When a scheduled task fails, an entry gets written to the event log here: Press + R, type “eventvwr.msc”, press “OK: Application and Services Logs /Microsoft /Windows /Task Scheduler /Operational:
      1. image
    2. Watch out for permission problems, tasks that have not been enabled, and disabled task histories (for troubleshooting).
    3. You might also want to dig deeper and schedule a task to alert your when your scheduled tasks failed.

How to organize your email by creating an Inbox rule in OWA

  1. This step-by-step GUIDE was written for filtering emails from our langlabemailer program (they happen to have “Your UNCC-LRC”  in the subject) into a separate folder so that users of the LRC keep the overview:
    1. students (longitudinally, for their language learner ePortfolios) ,
    2. but especially teachers (of classes with up to 36 students, throughout the term).
  2. But you can easily adapt the guide to any other email purpose.
    1. Including other LRC workflows based on emails: LRC resource booking also relies on OWA emails. All email sent from LRC resource mailboxes have “LRC”  at the beginning of the user name and email address.
  3. In short: Options / Create an Inbox Rule / Click “ new” / choose a type / choose keywords / choose folder to sort the email into when it arrives. Or graphically:
  4. clip_image001
  5.
  6. clip_image002
  7.
  8. clip_image003
  9.
  10. clip_image004
  11.
  12. clip_image005
  13.
  14. clip_image006
  15.
  16. clip_image007
  17. clip_image008

How to provide students with blended human/computer-automated feedback on their speaking using a dictation with speech recognition assignment screencast

  1. Teachers often feel there is never enough time for grading students’  speaking proficiency. Fortunately, we can now automate feedback on pronunciation using Windows 7 dictation with speech recognition.
  2. This feature will be  available for 7 languages on Windows 7 in the LRC, here is a demo for a reading exercise dictating German.
  3. An assignment step-by-step could look like this: Students
    1. record a screencast of their dictation,
    2. read a text to the computer in MS-Word,
    3. turn track changes on in MS-Word and correct the text (immediately or after dictation) where the computer could not recognize their speech,
    4. upload their screencast to Kaltura in Moodle.
    5. To grade the performance, the teacher has to review only at the very end of the screencast to see how many corrections the student needed to make (when it doubtabout the speech recognition validiiy, the teacher can easily jump to the screencast segment in question and, if necessary, override the speech recognition).
  4. This could be a regular assignment type since it provides the following benefits:
    1. immediate automated intelligent feedback for the student
    2. little grading overhead for the teacher, so that the teacher can concentrate her work on providing aural feedback on student recorded speech as a highlight maybe twice per term, maybe after mock exams  before a midterm and final exam
    3. some multimedia pieces demonstrating language proficiency for the student’s ePortfolio.
  5. Requirements:
    1. a quality headset (we use Sanako SLH-07Sanako SLH-07 USB)
    2. Windows 7  Enterprise/Ultimate with Language Packs,
    3. knowing how to switch the display language, (optional/recommended:) TBA:a simplified language switching facility,
    4. individual voice training data: speech recognition users have to train the computer  – once, even in a deepfrozen computer enviroinment,  since we enabled you to save this data to and restore it from a flash drive or personal network share space,
    5. a reading text (often authentic texts can be taken straight from the textbook, to fit in with the syllabus, like in this example from Treffpunkt-Deutsch 1st-year German),
    6. MS-Word with track changes
    7. screencast software (we use MS community clips)
    8. a way to submit the results to the teacher (we use Moodle with Kaltura video uploading (example for teachers, students do it similarly), but email could be sufficient depending on screencast length and attachment size allowance).

How a teacher can organize a student-controlled high-stakes assessment recording session using the Sanako in the LRC

  1. How:
    1. An initial central microphone and speaker test (animated step-by-step) is recommended. Clear the session afterwards.
    2. Recording: Have the student operate the Sanako recorder to individually record (like during a self-access assignment)
      1. For starters, teacher can display this narrated individual recordings with the Sanako Student Recorder training screencast, it auto-starts and auto-cycles):
      2. And/or explain:
        1. Red Record Button to record;
        2. Blue Stop button to stop recording
        3. Green Play Button to play their assignment for review (also use the recap button to jump back)
        4. Menu: “File / New”, if they want to redo the assignment.
        5. Button: call/envelope to call the teacher on the teacher station for help (an audio connection between student and teacher should pause  the recorder automatically)
    3. Submitting:
      1. Individually by students:
        1. Menu “File” / “Save” (opt to save as student track mp3), to save locally, once student is happy to submit.
        2. (recommended:) upload the save file to a Moodle single-file upload assignment. Requires the teacher to create a Moodle Single file upload assignment, with optional attached file first.
      2. From the Sanako tutor at the teacher station:
        1. For entire class (If you do not need the flexibility to have students end at different times). TBA
        2. Group-wise (varying (staggered) recording times):  TBA
  2. Pro’s:
    1. Less distraction from language learning by having to operate technology (editing audio rather then practicing L2) and more language-learning-specific features (sidetone, recap) than if using Audacity.
    2. Works with the Sanako Study 1200 teacher stations (e.g. automatic pause of recorder when remote connecting to student during monitoring of recording task).
  3. Con’s:
    1. noise interference with dozens of student speaking in a confined space simultaneously. Nobody wants to return to the language lab station of yore, i.e. in a cubicle. However, a teacher-controlled oral exam (sample video, step-by-step video),
      1. can play a soothing background sound to students over the headphones which insulates them from their neighbors (prevents both distraction and cheating);
      2. there is no room  for distracting unrelated chit-chat;
      3. there is no need for distracting conversation when  students do technical troubleshooting, during highly structured question/response exams.
    2. More user flexibility/control  is achieved by more individual distracting operation of computer technology, which always implies more opportunity for user error. To reduce (not eliminate!) the error ratio:
      1. Students
        1. have to have received the general digital audio lab introduction for students.
        2. have to double-check their recordings for quality before submitting.
      2. Teachers
        1. have to monitor students’ recording progress closely
          1. which the Sanako Study 1200 teacher station (link cannot replace hands-on training) greatly facilitates (provided Students use  the Sanako Student Recorder, as described above).
          2. however, even with a classroom management system like Sanako Study 1200, it is impossible to completely monitor a class size of students operating computers. Therefore teachers
        2. have to check the validity of submissions before students leave.
          1. If you use submission through Moodle, here are 2 tips how to do this quicker:
            1. how to quickly download their Moodle file submissions
          2. Whether you use submission through Moodle or collection through Sanako tutor:
            1. view end of this video for how to quickly check validity of all file submissions in a folder using Audacity
          3. are advised to have a make-up assessment plan not only for those students missing the exam, but also for those that miss to complete the computerized multimedia assessment correctly.
