Sanako Study 1200 classroom map can now scroll to fit on small screens

  1. We are now on Sanako Study 1200 ver 7.

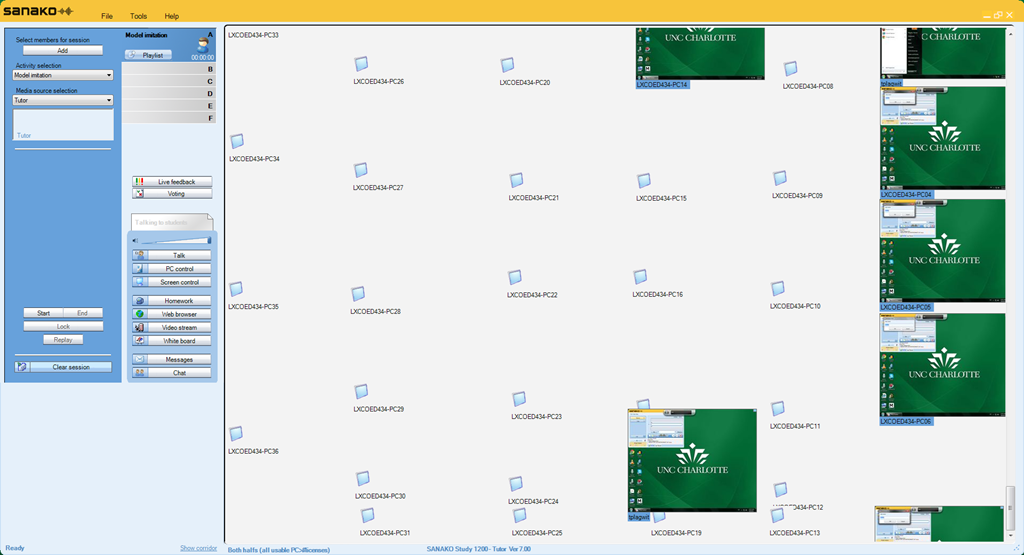

  2. As you can see in this thumbnail view (note the vertical scrollbar on the right), it does help,
  3.  image
  4. but not enough. Here is why:
    1. I can get it to  scroll only vertically.
    2. I can only marginally move the student icons off the map when I use the GUI (ctrl-shift drag&drop). Wondering whether I have to dig into the XML source to force an even wider layout…

LRC teacher screen new and improved

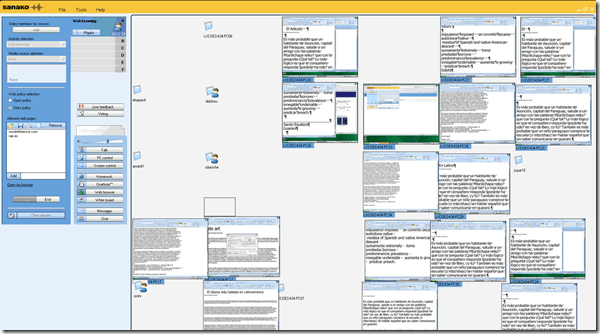

The above screenshot (taken from a screencast) does not do the new screen justice: Teachers can actually read all the ongoing student work, and, with two clicks, intervene surgically, where necessary.

On the right screen of the teacher PC in the main LRC classroom, we went from WXGA to HD1080, gaining almost 60% more screen real estate (=(1920*1080)/(1280*1024)), a crucial improvement for displaying all the information the Sanako Study 1200 provides the teacher with.

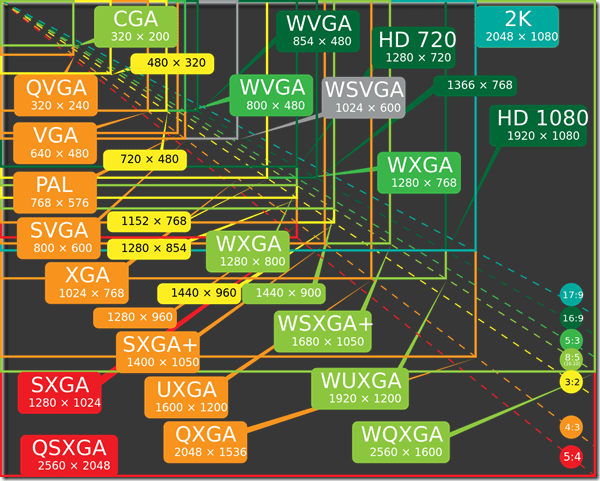

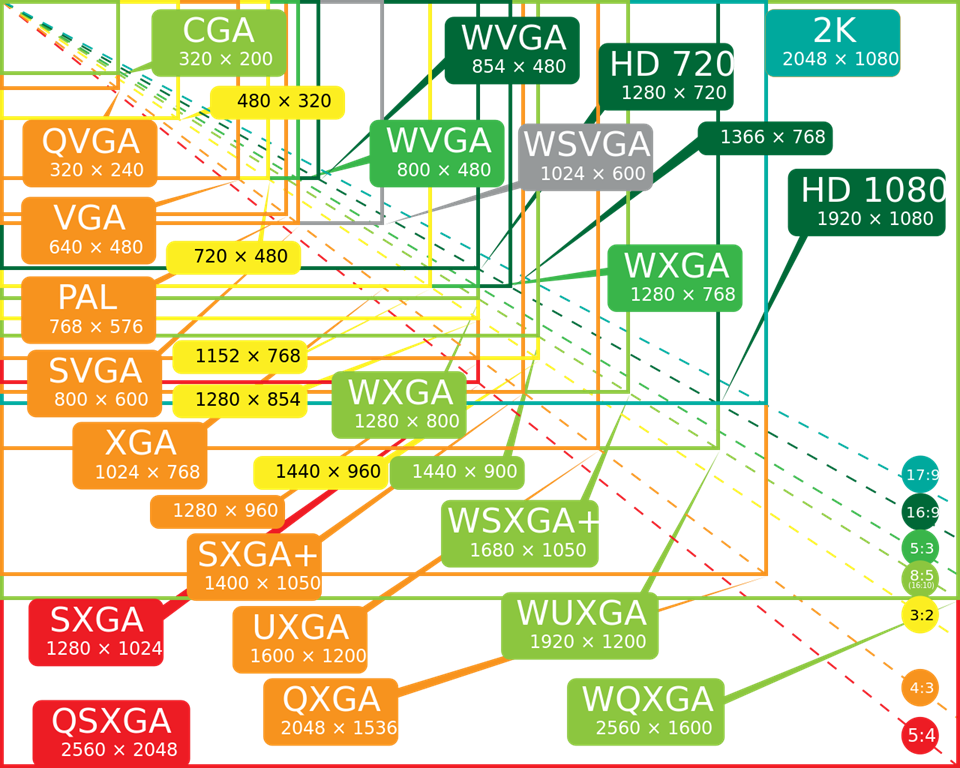

Or in more graphical terms (thanks to Wikipedia), we went from 2nd lower left to 3rd upper right:

1280px-Vector_Video_Standards5_svg

To fit the actual classroom layout into the display, we would however need the bottom lower right resolution (WQXGA). We still have to split the classroom you see into 2 halves and tilt those by 90 degrees clockwise to fit them onto the right teacher screen.

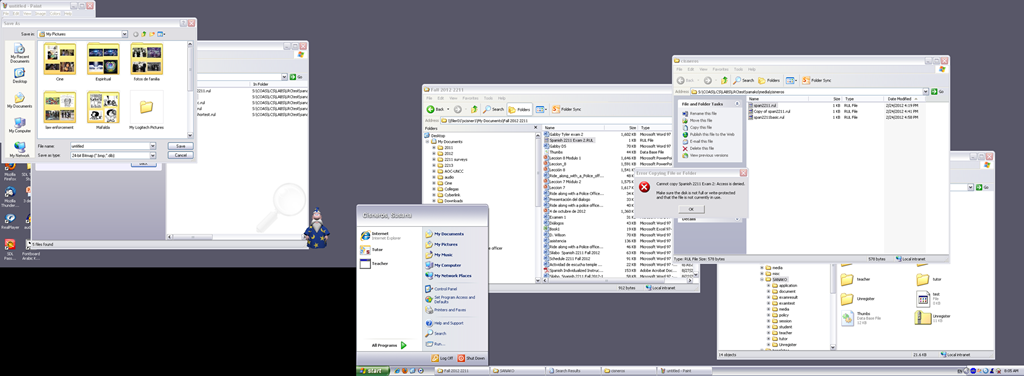

Since our left screen is still the original 1024*768 (and will be until not only the screen, but the switch and projector get upgraded), you have to work (= move your mouse pointer) around the “wall” formed by the black block in the lower right of this screenshot.


How to take roll in class using Sanako Study 1200

  1. Today:
    1. I had to work on getting my Sanako classroom layouts back up after a network cutover on the first day of the academic year.
    2. I could observe a teacher new to the Sanako lab taking roll on paper, reading out each student’s name and finding the student in the classroom . This is a known good way to learn to put a face to a students’ name. Once that is done (and maybe could be done also faster using student thumbnails in university computer systems like the LMS), one can save teaching time taking roll doing the following :
  2. At the beginning of each of your class meetings:
    1. You cannot start a sanako class before your students have logged in and their sanako student clients have started up – that is the first I always ask my students to do.
    2. In the initial Sanako tutor startup dialogue, open an empty class.
    3. Wait for the “corridor” to be fully populated, then select all.
    4. Have the sanako tutor populate the classroom layout.
    5. Choose menu file / save classroom layout as, and save in your tutor folder with the date as the filename.
    6. (Load your familiar class layout to actually begin your class – this will take little extra time, for Sanako tutor does not need to wait again for the Sanako student clients to start up).
  3. After the last day of classes:
    1. load each saved file into MS-Excel (as an XML table),
    2. first column will be class date, hide all columns in between that and your student login name,
    3. select and copy these 2 columns into an attendance spreadsheet (if you find a way to strip the xml wrapper, you can merge the files on the command line – after all, the classroom layout files are just plain text),
    4. in the attendance spreadsheet, calculate attendance
      1. either sort first by date, then by login name, and count attendance manually using the dates;
      2. or have Excel count for you with an array formula pasted into a third column that checks for and counts identical dates.
  4. Final thoughts: Your mileage may vary if you don’t teach all your classes in a Sanako lab – I used to and have come to appreciate an institutionally provided and maintained lab infrastructure which is stable – compared with complaints I have heard about having to rely on your students not forgetting their clickers if you want to use technology rather than class time for taking roll outside of a stable infrastructure.

Loading the right classroom file for an exam that uses Sanako

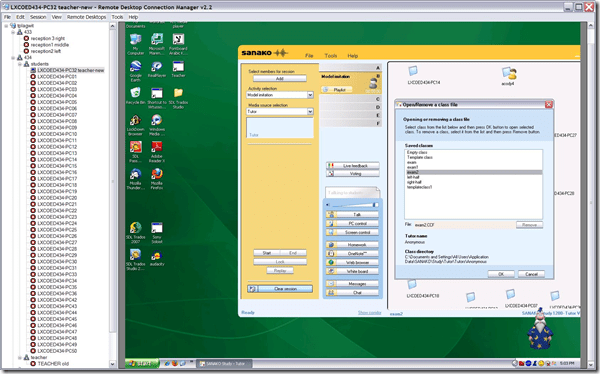

exam2 Currently the preferred layout is Exam 2: Choose this when the Sanako starts

How best to fit your class into the Sanako Study1200 Classroom Layout

  1. When started, the Study1200 Tutor will prompt for the classroom layout (computer and student icons in the right part of the Sanako window) that you want to load, like so:classroom-layouts
  2. We have 2 classroom layouts preconfigured for common uses of the LRC
    1. right-half”: only the right half, as viewed by the teacher, of the coed434 main classroom. If you come with smaller classes (<16), this will fit relatively nicely onto the screen.
    2. “template class” = all that can fit onto the screen which means:To fit students (and, more importantly, the reasonably sized thumbnails of their desktops) onto the screen (Sanako Tutor will not span both screens, at least not if they have different resolutions), we  had to
      1. take the main classroom COED434lrc-layout-map-main (1000x442)
      2. break out the front 2 rows, break them apart in the middle, and turn them counterclockwise, like so: coed434-left-front2-counterclockwise (623x1000)coed434-right-front2-counterclockwise (627x1000)
      3. to achieve the following result in the Study 1200 classroom layout: sanako1200-screen-control-lrcthumbnails of the 2 front rows barely fit the layout, remaining computers from the rear row are cluttering the bottom of the classroom layout. This severely limits the usefulness of this great feature, and is counter-intuitive, which is twice as bad when standing in front of (or here rather: behind) a class. We are working on getting a bigger secondary screen on the teacher podium. Since we will also eventually need more Sanako licenses to equip the whole classroom. So the secondary screen should be as big as we can possibly get for the podium: 1900*1200 would be 1.75 times what we have now.
      4. To simplify this while we wait, we have numbered the seats (rather: the monitors) in the LRC according to the computer numbers. In the Study-1200 classroom layout, you can show the computer (names which end in these) numbers instead of the the student login names, by going to menu: tools / admin / change student names.
  3. if you classroom configuration changes,
    1. you can change the layout by reloading a preconfigured classroom layout file, like so:classroom-layout-open
    2. you can alter the layout on the right on the fly, by CTRL-SHIFT dragging student/computer icons
      1. If you have done this, on exiting, the study1200 tutor will ask you whether you want to save your changes to the layout. Feel free to do this, as longs as you save them in your personal tutor folder. Please do not overwrite existing layouts for all teachers.
    3. Classroom layouts are stored with the extension CCF, but are simply XML files. To preview or even edit them, You can open them in your preferred XML editor, like so in MS-Excel:classroom-layout-open-xml
