Putting 2 Manfroto and Cullman camera tripods and 2 Smith-Victor Lights back into circulation with repair parts from eBay and HomeDepot

  1. The Library handed us back circulation of equipment that supports production classes in film studies since they could not maintain the equipment in good state of repair. We are having a hard time to do that, too,
    1. and regularly seem to lose – since we have no library, but only student staff, likely even more – vital parts (despite plenty of training and (feed:)checklists)
    2. which we cannot get replaced through approved university procurement channels.
  2. Enter the local HomeDepot, which has an entire aisle dedicated to screws, bolts, nuts and wing nuts,  and eBay, which provides reasonable search features if you specify your parts well. While we do not have part numbers, the first order attempt was delivered in short time and proved successful: Here are the broken lights (screws wing nuts has been replaced in the meantime): light2 stand brokenlight3 stand brokenlight3 stand broken (3)light3 stand broken (2)
  3. Here are the the fixed tripods
    1. (still in the surplus bin, but no need: back into circulation): CAM04294
    2. and their original parts, and replacement parts from eBay:
  4. CAM04279CAM04283CAM04292CAM04293

Checklist LRC Tripod13 small

  1. Are the Parts there?
    1. Tripod
    2. Screws image
    1. Test the Functionality
      1. Make sure that tripod can seat on 3 legs
      2. Attach a camera to tripod
      3. Move the camera in all directions (top/bottom, left/right…)

Checklist LRC Tripod14 middle

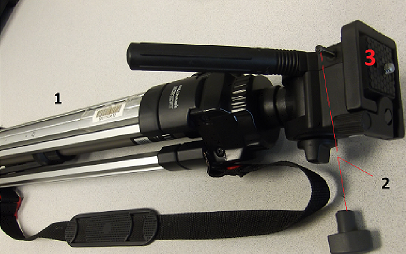

  1. Are the Parts there?
    1. Top plate
    2. Tripodimage
  2. Test the Functionality:
    1. Make sure that tripod can stand on 3 legs
    2. Attach a camera to tripod
    3. Move the camera in all directions (top/bottom, left/right…)

Checklist LRC Tripod15 large

  1. Are the Parts there?
    1. Screws
    2. screw post
    3. Tripod image
  2. Test the Functionality:
    1. Make sure that tripod can seat on 3 legs
    2. Attach a camera to tripod
    3. Move the camera in all directions (top/bottom, left/right…)

Checklist for light tripod (05-12)

  1. Are all Parts there?
    1. Tripod screw, wing nut
    2. Top plate – make sure this part is not missing!clip_image001
  2. Test the Functionality
    1. Make sure that tripod can extend and stand on 3 legs, like so:clip_image002
    2. Attach a camera to tripod.
    3. Move camera in all directions (top/bottom, left/right…)
  3. Maintenance:
    1. reduce tripod size again to its most compact position.
    2. Close all levers so that legs arrest.

Checklist for heavy tripods (01-04)

  1. Are all Parts there?
    1. Tripod
    2. Head plate
    3. Screws /wing nuts
    4. Handleclip_image001
  2. Test the Functionality:
    1. Attach a camera to tripod.
    2. Move camera in all directions (top/bottom, left/right…)
  3. Maintenance:
    1. reduce tripod size again to its most compact position.
    2. Close all levers so that legs arrest.
